Insulator No. 2 Installation Note

Tighten the bolts in the order shown in the figure below.

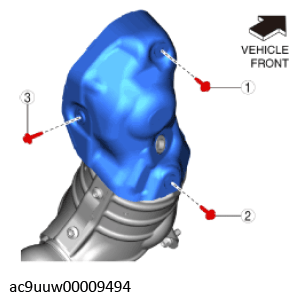

Fig 1: Insulator No 2 Bolts Tightening Sequence (AWD)
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
