Exhaust Manifold Installation Note: Notes

Tighten the nuts in the order shown in the figure below.

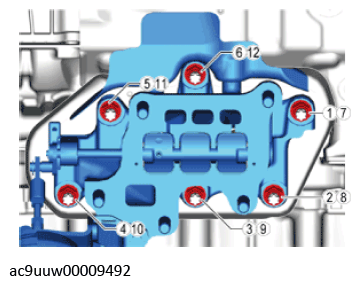

Fig 1: Exhaust Manifold Nuts Tightening Sequence (AWD)
Courtesy of MAZDA MOTORS CORP.

Tightening torque

50-57 N.m {5.1-5.8 kgf.m, 37-42 ft.lbf}
