Power Seat Switch Inspection
>>
Driver-Side With Memory Power Seat
Driver-Side With Memory Power Seat

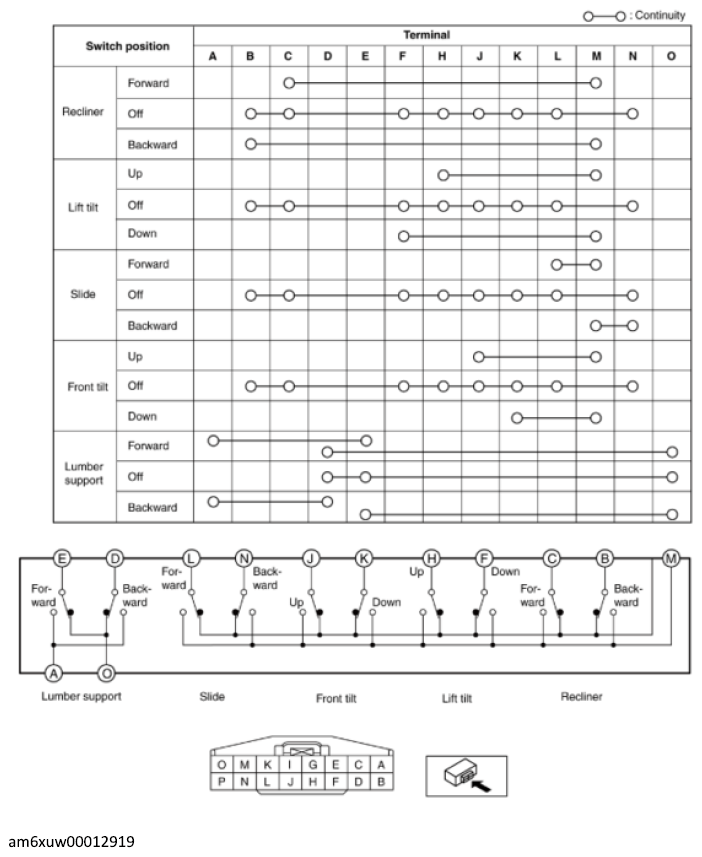

Fig 1: Power Seat Switch Circuit Diagram - Driver-Side With Memory Power Seat
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
