Trunk End Trim Removal/Installation

  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove the fasteners.

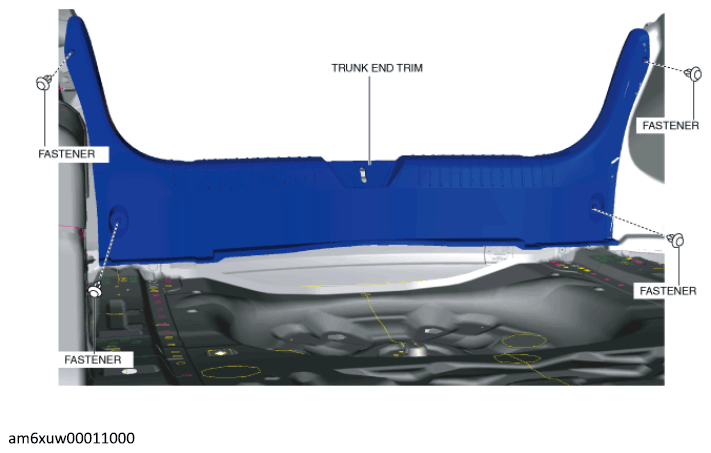

    Fig 1: Trunk End Trim And Fasteners
    G12236524Courtesy of MAZDA MOTORS CORP.
  4. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure below while detaching clips, pins, and guides.

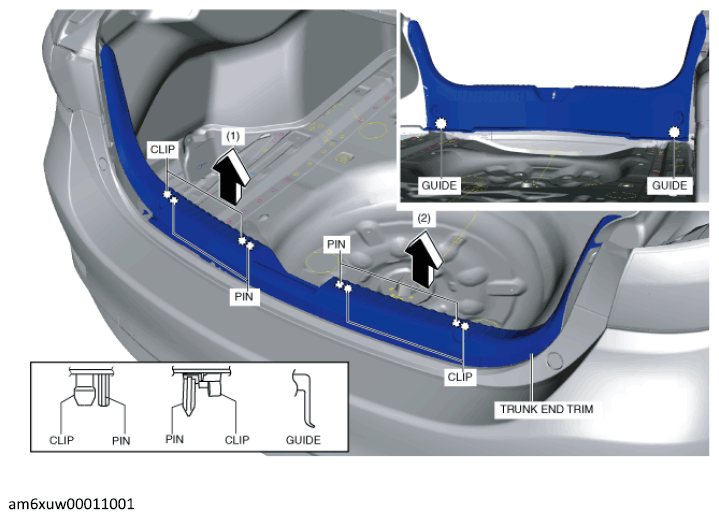

    Fig 2: Pulling Trunk End Trim
    G12236525Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
