No. 1 Blown Fuses

NO. 1 BLOWN FUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5) - TROUBLESHOOTING

1

BLOWN FUSES

[TROUBLESHOOTING HINTS]

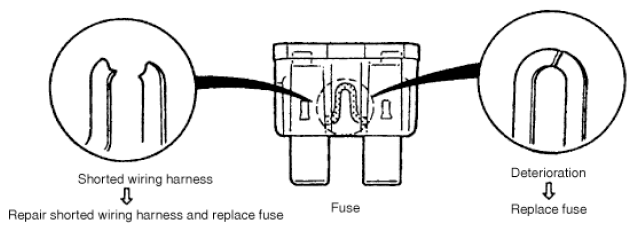

Inspect condition of fuse.

G11550465

Damaged fuse

Related wiring harness

MAIN

FAN GE fuse
ADD FAN GE fuse
FUEL PUMP fuse
IG2 fuse
ENG+B fuse
ENG.MAIN fuse
INJECTOR fuse
EVVT fuse

FAN GE

Cooling fan relay No. 1

ADD FAN GE

Cooling fan relay No. 3

ENGINE.IG1

Fuel pump relay
PCM

FUEL PUMP

Fuel pump relay

DCDC

DC-DC converter ⁽²⁾

STR

Generator ⁽¹⁾
Starter

C/U IG1

DC-DC converter ⁽²⁾
Generator ⁽²⁾

IG2

ACC relay
Starter relay

ENG+B

Current sensor ⁽²⁾
PCM

ENG.MAIN

Main relay

INJECTOR

Fuel injector relay

EVVT

Electric variable valve timing relay

ENGINE1

Electric variable valve timing relay
A/F sensor
HO2S
MAF sensor/IAT sensor No. 1
Intake CMP sensor
CV solenoid valve

ENGINE2

Fuel injector relay
Purge solenoid valve
OCV
PCM
Engine oil solenoid valve
Exhaust CMP sensor
Ignition coil/ion sensor No. 1
Ignition coil/ion sensor No. 2
Ignition coil/ion sensor No. 3
Ignition coil/ion sensor No. 4

ENGINE3

Cooling fan relay No. 1
Cooling fan relay No. 2
Cooling fan relay No. 3
Active air shutter ⁽²⁾
Forward sensing camera (FSC) ⁽³⁾

⁽¹⁾	Vehicles without i-ELOOP

⁽²⁾	Vehicles with i-ELOOP

⁽³⁾	Vehicles with forward sensing camera (FSC)
