Joint Hose Installation Note

FUEL TANK SIDE

Fuel tank type A

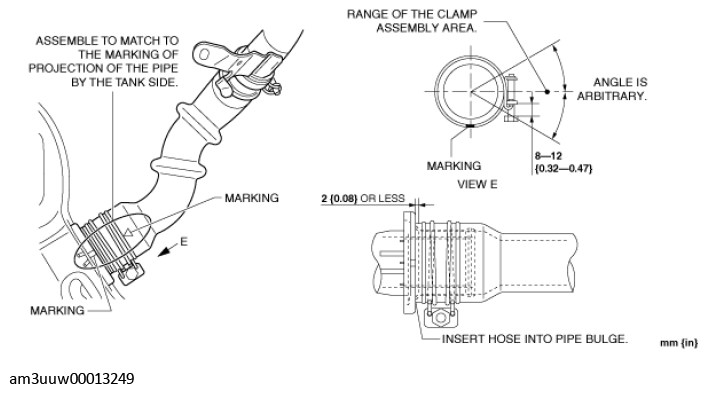

Fig 1: Installing Joint Hose Fuel Tank Side - (Type A)

Courtesy of MAZDA MOTORS CORP.

Fuel tank type B

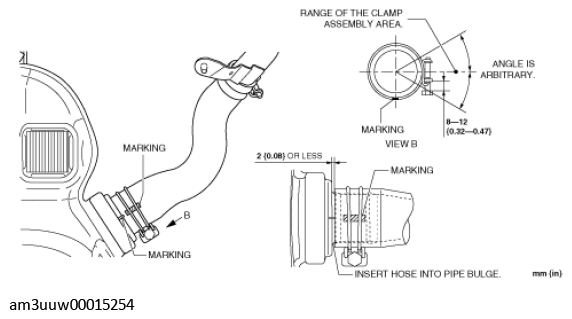

Fig 2: Installing Joint Hose Fuel Tank Side - (Type B)

Courtesy of MAZDA MOTORS CORP.

Fuel tank type C, D

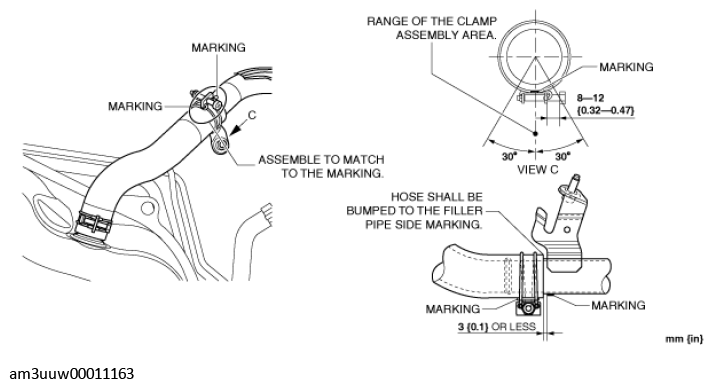

Fig 3: Installing Joint Hose Fuel Tank Side - (Type C, D)

Courtesy of MAZDA MOTORS CORP.

FUEL-FILLER PIPE SIDE

Fuel tank type A

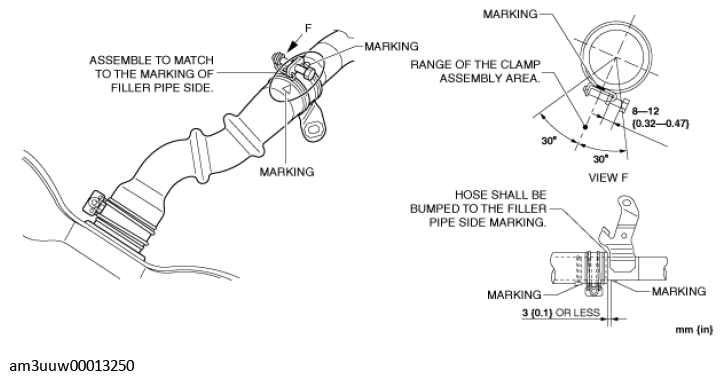

Fig 4: Installing Joint Hose Fuel-Filler Pipe Side - (Type A)

Courtesy of MAZDA MOTORS CORP.

Fuel tank type B

Fig 5: Installing Joint Hose Fuel-Filler Pipe Side - (Type B)

Courtesy of MAZDA MOTORS CORP.

Fuel tank type C, D

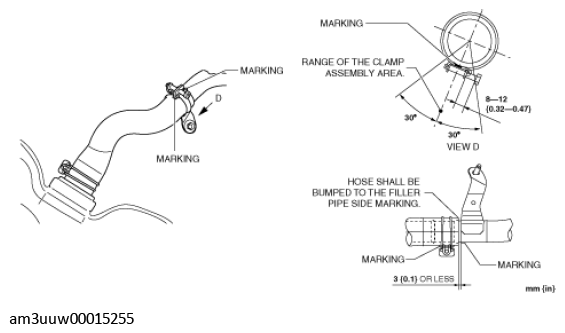

Fig 6: Installing Joint Hose Fuel-Filler Pipe Side - (Type C, D)

Courtesy of MAZDA MOTORS CORP.
