Fresh-air Duct Installation Note
Install the fresh-air duct as shown in the figure below.

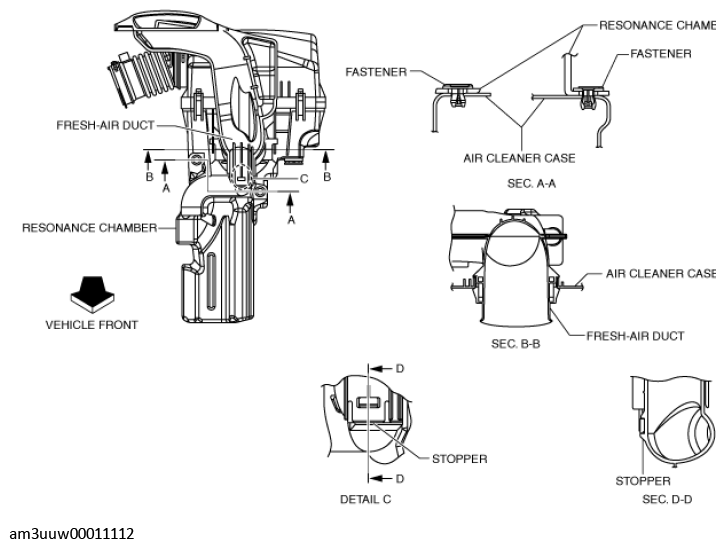

Fig 1: Installing Fresh-Air Duct
Courtesy of MAZDA MOTORS CORP.
