Evaporative Hose Installation Note
Install the evaporative hose as shown in the figure below.

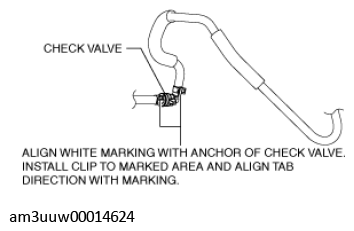

Fig 1: Installing Evaporative Hose
Courtesy of MAZDA MOTORS CORP.
