Back-Up Light Switch Removal/Installation

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the air cleaner component. (ex: air cleaner, air hose) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

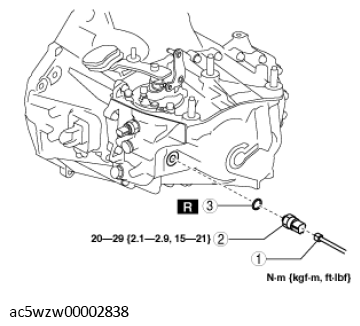

Fig 1: Installing Back-Up Light Switch With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Back-up light switch connector
2	Back-up light switch
3	Gasket
