Fresh-air Duct Removal Note

  1. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL ).
    2. Front bumper slider (RH) (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION ).
    3. Front combination light (RH) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION ).
  2. Disconnect the harness clip as shown in the figure below.
    Fig 1: Disconnecting Harness Clip
    G11274487Courtesy of MAZDA MOTORS CORP.

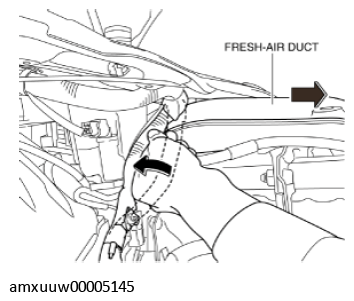

  3. Remove the fresh-air duct as shown in the figure below.
Fig 2: Removing Fresh-Air Duct
G11274488Courtesy of MAZDA MOTORS CORP.
