Fresh-air Duct Removal Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL .)
    2. Front bumper slider (RH) (See FRONT BUMPER SLIDER REMOVAL/INSTALLATION .)
    3. Front combination light (RH) (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  2. Disconnect the harness clip as shown in the figure.

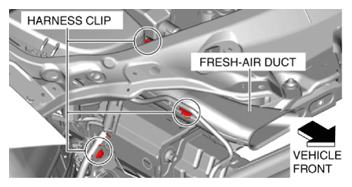

    Fig 1: Identifying Fresh-Air Duct And Harness Clips
    G10951684Courtesy of MAZDA MOTORS CORP.
  3. Remove the fresh-air duct as shown in the figure.

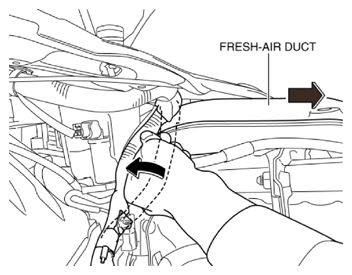

    Fig 2: Removing Fresh-Air Duct
    G10951685Courtesy of MAZDA MOTORS CORP.
