Tuner And Amp Unit (Tau) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

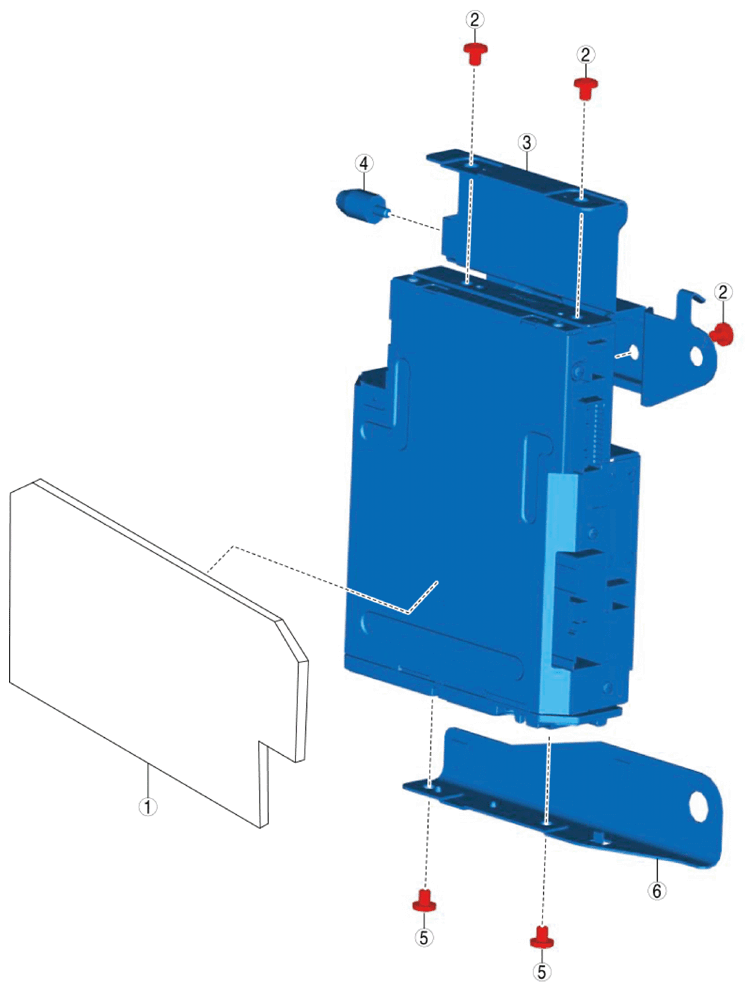

Fig 1: Identifying Tuner And Amp Unit (TAU) Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Cushion pad (See Cushion Pad Installation Note .)
2	Screw A
3	Bracket A
4	Positioning pin
5	Screw B
6	Bracket B

Assemble in the reverse order of disassembly.
