INFO button

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between steering switch terminals 3D and 3L under the following conditions.
- Resistance with INFO button pressed and held
  - 999.9-1, 020.1 ohms

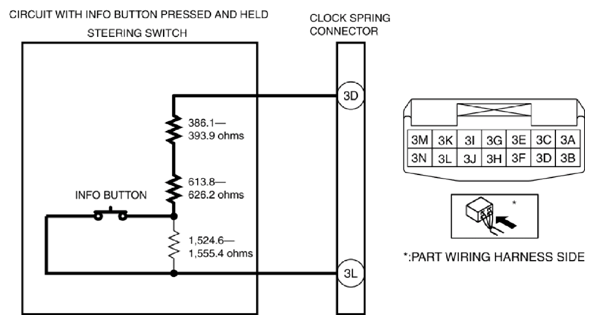

  Fig 1: Measuring Resistance Between Steering Switch Terminals 3D And 3L (999.9-1, 020.1 Ohms)
  Courtesy of MAZDA MOTORS CORP.
- Resistance with any switch not pressed
  - 2, 524.5-2, 575.5 ohms

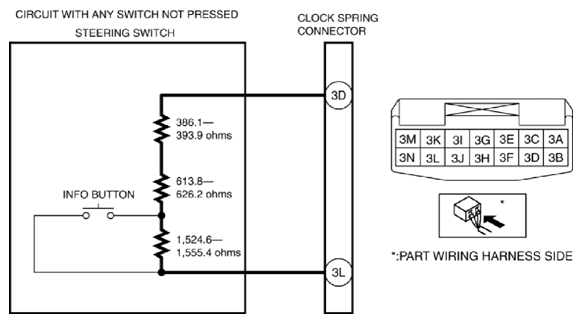

  Fig 2: Measuring Resistance Between Steering Switch Terminals 3D And 3L (2, 524.5-2, 575.5 Ohms)
  Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
