Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Seat (RH) (See SEAT REMOVAL/INSTALLATION .)
2. Scuff plate (RH) (See SCUFF PLATE REMOVAL/INSTALLATION .)
3. Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
4. Wind blocker (See WIND BLOCKER REMOVAL/INSTALLATION .)
5. Side shelf (RH) (See SIDE SHELF REMOVAL/INSTALLATION .)
Disconnect the connectors.

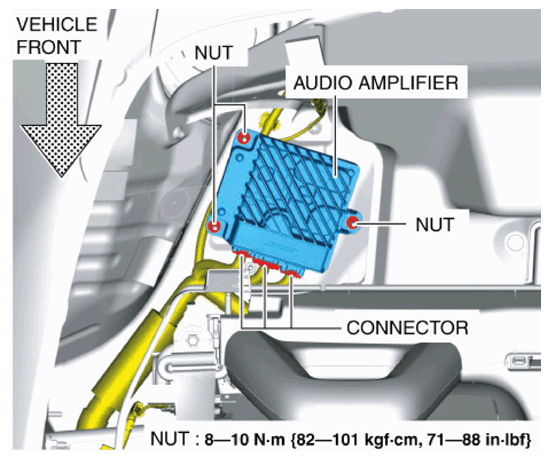

Fig 1: Disconnecting Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.
Remove the audio amplifier.
To remove the audio amplifier bracket, remove the nuts and then remove the audio amplifier bracket.

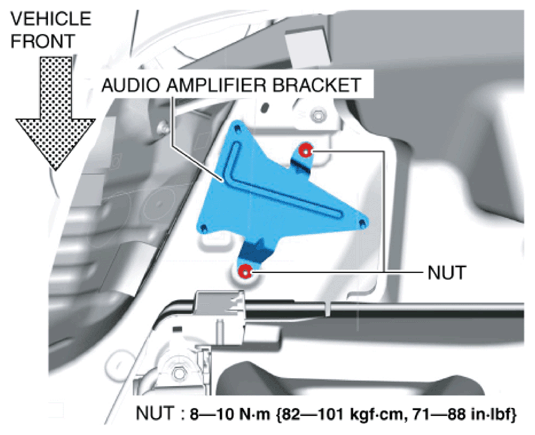

Fig 2: Removing Audio Amplifier Bracket And Nuts
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
