Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Disconnect the connector.

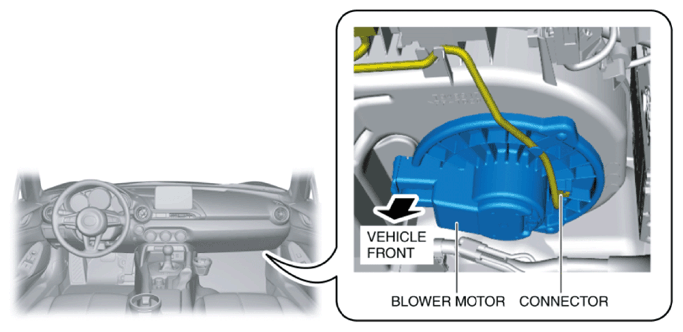

Fig 1: Removing Blower Motor
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

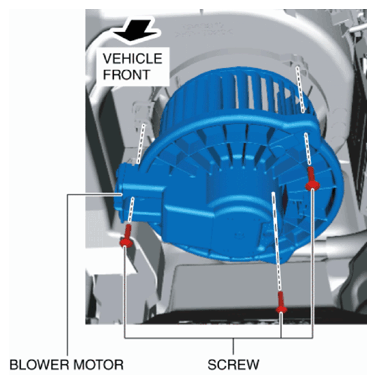

Fig 2: Removing Blower Motor Screws
Courtesy of MAZDA MOTORS CORP.
Remove the blower motor.
Install in the reverse order of removal.
