Instrumentation/Driver Info. Location Index
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

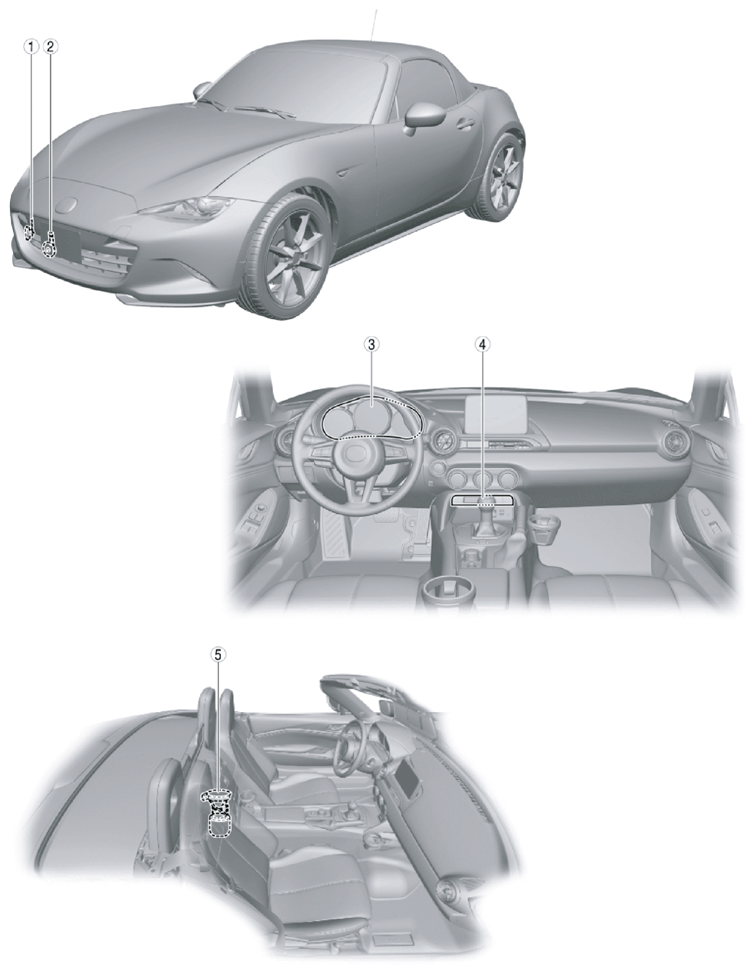

COMPONENT DESCRIPTION
| 1 | Horn HI (See HORN REMOVAL/INSTALLATION .) (See HORN INSPECTION .) |
| 2 | Horn LO (See HORN REMOVAL/INSTALLATION .) (See HORN INSPECTION .) |
| 3 | Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER OPERATION RECORD .) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE .) |
| 4 | Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .) (See INDICATOR UNIT INSPECTION .) |
| 5 | Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .) (See FUEL GAUGE SENDER UNIT INSPECTION .) |
