Steering Column Removal Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Always lock the tilt lever to prevent damage to the steering column. In addition, do not unlock the tilt lever until the steering column installation is completed.
  • If the steering column is removed, remove it according to the procedure to prevent damage to intermediate shaft that could result if the steering column is removed in the incorrect order.
  1. Lock the tilt lever.

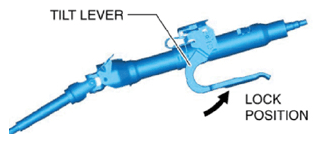

    Fig 1: Locking Tilt Lever
    G10953031Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the steering column, clip, and intermediate shaft (upper) as shown in the figure.

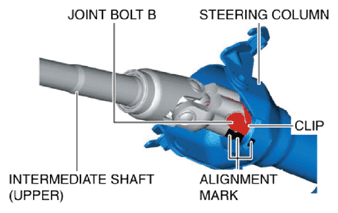

    Fig 2: Placing Alignment Marks On Steering Column, Clip And Intermediate Shaft (Upper)
    G10953032Courtesy of MAZDA MOTORS CORP.
  3. Remove the joint bolt B.
  4. Disconnect the intermediate shaft (upper) from the steering column.
  5. Remove the nuts, then remove the steering column from the dashboard member.
  6. Remove the clip from the steering column.
