Boot Band Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flathead screwdriver into the crimped part of the boot band, expand the crimped part and remove the boot band.

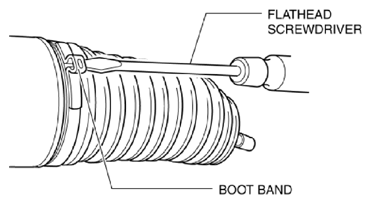

    Fig 1: Inserting Flathead Screwdriver Into Crimped Part Of Boot Band
    G10953083Courtesy of MAZDA MOTORS CORP.
