Tie Rod Assembly Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

If the stopper is placed at the steering rack end, move the stopper in the direction of the arrow so that a wrench can be hooked to the steering rack end.

Fig 1: Moving Stopper
Courtesy of MAZDA MOTORS CORP.

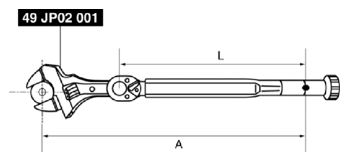

Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and measure dimensions A and L shown in the figure.

Fig 2: Identifying SST To Torque Wrench Dimensions
Courtesy of MAZDA MOTORS CORP.

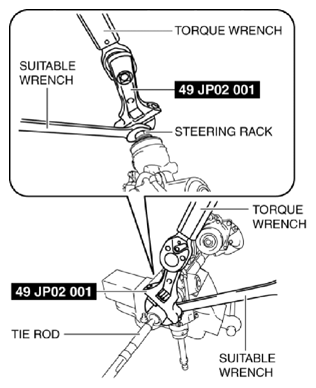

Tighten the tie rod after calculating the tightening torque using the following formula.

Fig 3: Tightening Tie Rod
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 89-98 N.m {9.1-9.9 kgf.m, 66-72 ft.lbf}
Calculation formula
- Tx(L/A)
- T:Tightening torque (89-98 N.m {9.1-9.9 kgf.m, 66-72 ft.lbf})
- L:Torque wrench effective length
- A:Length from center of tie rod to grip
Move the stopper at the steering rack to the tie rod end.

Fig 4: Moving Stopper At Steering Rack To Tie Rod End
Courtesy of MAZDA MOTORS CORP.
