Joint Hose Installation Note

  1. Install the joint hose as shown in the figure below.

    Fuel tank side

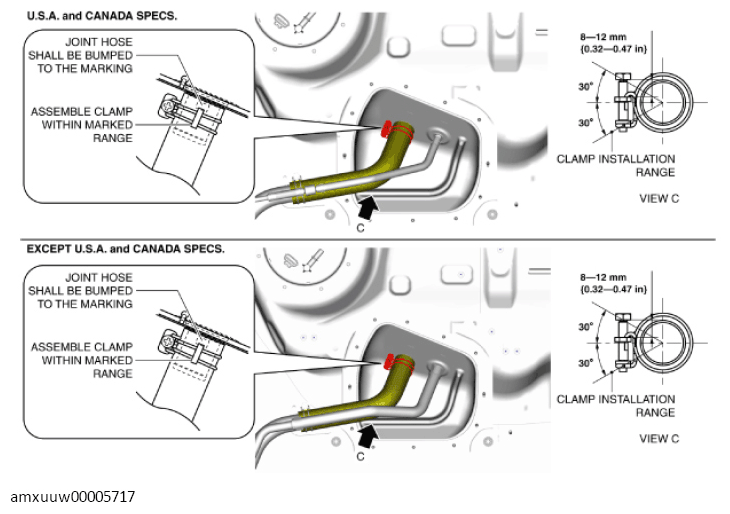

Fig 1: Installing Joint Hose (Fuel Tank Side)
G11274449Courtesy of MAZDA MOTORS CORP.

Fuel-Filler Pipe Side

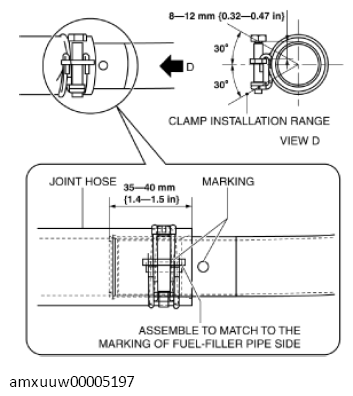

Fig 2: Assembling Match Mark Side Of Fuel-Filler Pipe Side
G11274450Courtesy of MAZDA MOTORS CORP.
