Resonance Chamber No. 1 Installation Note

  1. Install the resonance chamber by aligning it with the air cleaner case grooves as shown in the figure below and rotate the resonance chamber until the tab locks.

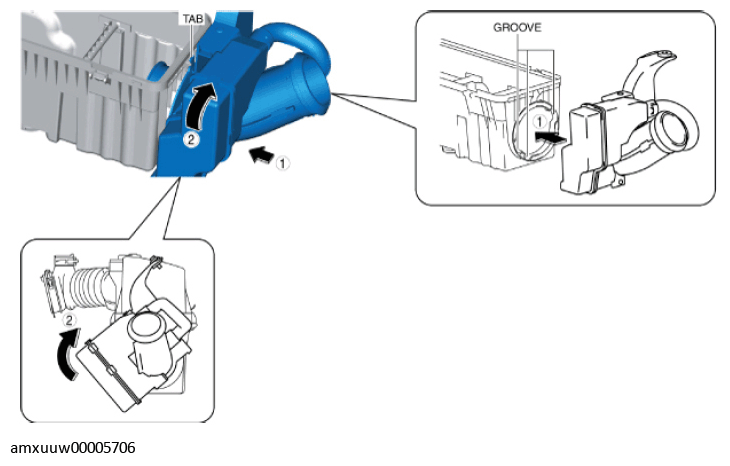

    Fig 1: Rotating Resonance Chamber Until Tab Locks
    G11274503Courtesy of MAZDA MOTORS CORP.
  2. Install the following parts as a single unit:
    • Air cleaner case
    • Air cleaner element
    • Air cleaner cover
    • Resonance chamber No. 1
  3. Install the MAF sensor/IAT sensor No. 1. (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION ).
