Front Abs Wheel-Speed Sensor Removal/Installation

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
2. Remove the front mudguard No. 1 and front deflector as a single unit. (See FRONT MUDGUARD REMOVAL/INSTALLATION ).
3. Remove in the order indicated in the figure below.
4. Install in the reverse order of removal.
5. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

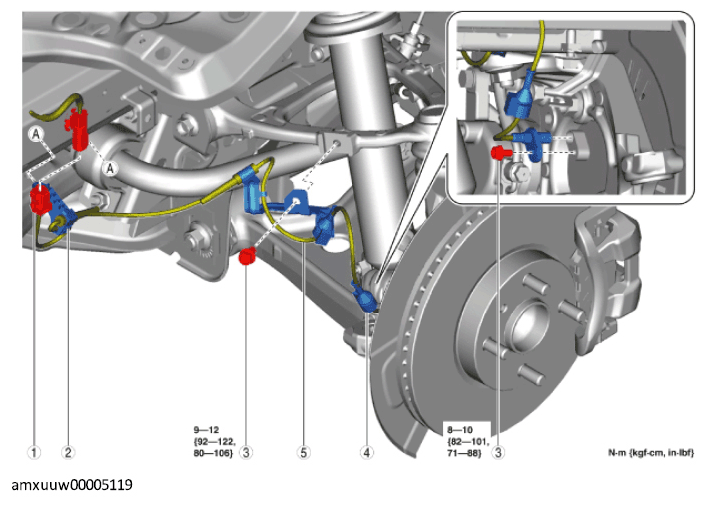

Fig 1: Front ABS Wheel Speed Sensor Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Harness clip
3	Bolt
4	Grommet
5	Front ABS wheel-speed sensor
