DSC HU/Cm Removal/Installation: Notes

If the DSC HU/CM configuration is not completed, it could result in an unexpected accident due to the DSC being inoperative. If the DSC HU/CM is replaced, always use the automatic configuration function so that the DSC operation conditions are correct
If the DSC related parts sensor initialization procedure is not completed, the DSC will not operate properly and it might cause an unexpected accident. Therefore, after replacing the DSC HU/CM, always perform the DSC related parts sensor initialization procedure to insure proper DSC operation.

CAUTION:

The internal parts of the DSC HU/CM could be damaged if dropped. Be careful not to drop the DSC HU/CM. Replace the DSC HU/CM if it is subjected to an impact.

NOTE:

When the ignition is switched ON (engine off or on) after the DSC HU/CM is replaced, the DSC HU/CM reads the vehicle specification information sent via CAN communication from the instrument cluster and stores it.
The DSC HU/CM prior to replacement stores the vehicle specification information.
A new DSC HU/CM does not store any vehicle specification information.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Remove in the order indicated in the figure below.
Install in the reverse order of removal.
After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING ).
If the DSC HU/CM is replaced, perform the auto configuration and the initialization of the sensors for DSC-related parts.
1. Switch the ignition ON (engine off or on) and wait for 10 s or more.
2. Switch the ignition off and wait for 3 s or more.
3. Switch the ignition ON (engine off or on) and wait for 3 s or more for the DSC HU/CM auto configuration to complete.
4. Clear the DTC. (See CLEARING DTC [DSC HU/CM] ).
5. Switch the ignition off and wait for 3 s or more.
6. Switch the ignition ON (engine off or on) and wait for 10 s or more.
7. Using the M -MDS, verify that DTCs U2300:54/U2300:55/U2300:56/U2300:64 are not displayed.
  - If DTCs U2300:54/U2300:55/U2300:56/U2300:64 are displayed, go to the DTC troubleshooting procedure. (See DTC U2300:54/U2300:55/U2300:56/U2300:64 [DSC HU/CM] ).
8. Perform the sensor initialization for the DSC-related parts. (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE ).
9. Clear the DTC. (See CLEARING DTC [DSC HU/CM] ).
10. Switch the ignition off and wait for 3 s or more.
11. Switch the ignition ON (engine off or on) and wait for 10 s or more.
12. Using the M -MDS, verify that DTCs C0044:54/C0061:54/C0062:54/C0063:54 are not displayed.
  - If DTCs C0044:54/C0061:54/C0062:54/C0063:54 are displayed, go to the DTC troubleshooting procedure. (See DTC C0044:01/C0044:28/C0044:49/C0044:54 [DSC HU/CM] ). (See DTC C0061:28/C0061:54/C0061:64 [DSC HU/CM] ). (See DTC C0062:28/C0062:54/C0062:64 [DSC HU/CM] ). (See DTC C0063:28/C0063:54/C0063:64 [DSC HU/CM] ).

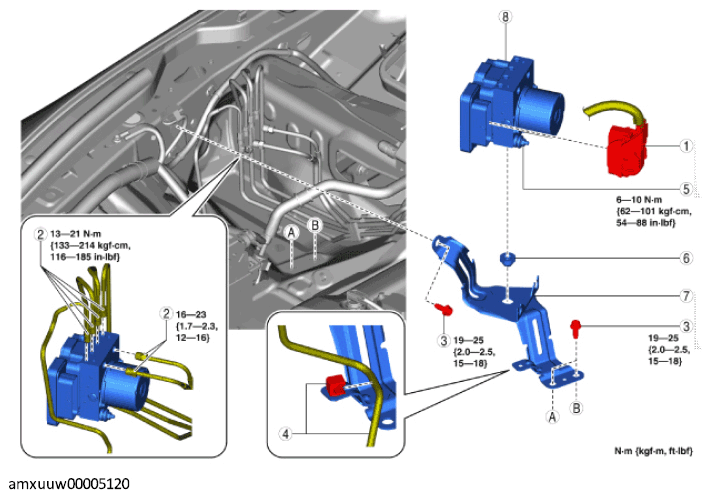

Fig 1: DSC HU/CM Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	DSC HU/CM Connector (See DSC HU/CM Connector Removal Note .) (See DSC HU/CM Connector Installation Note .)
2	Brake pipe (See Brake Pipe Removal Note .) (See Brake Pipe Installation Note .)
3	Bolt (See Bolt Installation Note .)
4	Clip, Brake pipe (See Clip, Brake Pipe Installation Note .)
5	Nut
6	Mount rubber
7	Bracket
8	DSC HU/CM
