Driver-Side Door Glass Cannot Be Operated Manually Or Automatically [Power Window System]: Notes

Description	Driver-side door glass cannot be operated manually or automatically using power window main switch

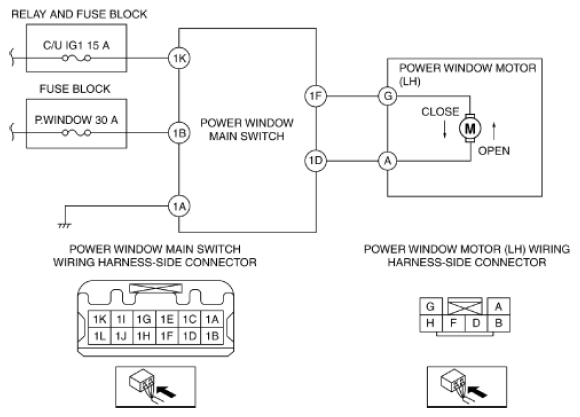

Possible Causes	Power window main switch malfunction Power window motor (LH) malfunction Malfunction in power window main switch power supply circuit Short to ground in wiring harness between C/U IG1 15A fuse and power window main switch terminal 1K Short to ground in wiring harness between P. WINDOW 30A fuse and power window main switch terminal 1B C/U IG1 15A fuse malfunction P. WINDOW 30A fuse malfunction Open circuit in wiring harness between C/U IG1 15A fuse and power window main switch terminal 1K Open circuit in wiring harness between P. WINDOW 30A fuse and power window main switch terminal 1B Malfunction in wiring harness between power window main switch terminals and power window motor (LH) terminals Open circuit in wiring harness between power window main switch terminal 1D and power window motor (LH) terminal A Open circuit in wiring harness between power window main switch terminal 1F and power window motor (LH) terminal G Short to ground in wiring harness between power window main switch terminal 1D and power window motor (LH) terminal A Short to ground in wiring harness between power window main switch terminal 1F and power window motor (LH) terminal G Open circuit in wiring harness between power window main switch terminal 1A and body ground Connector poor contact or terminal damage
