MX-5 Miata Club, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Symptom Troubleshooting - A/T
>>
Quick Diagnosis Chart
Quick Diagnosis Chart

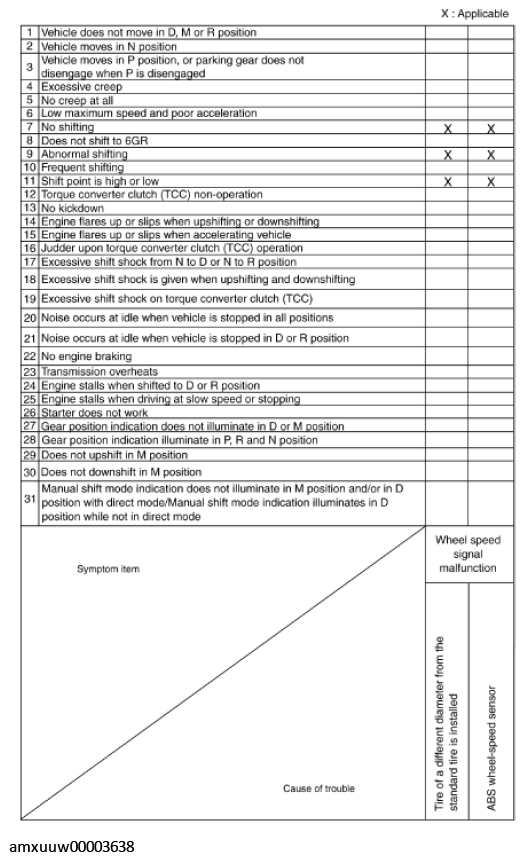

Fig 1: Automatic Transmission Control System Quick Diagnosis Chart (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

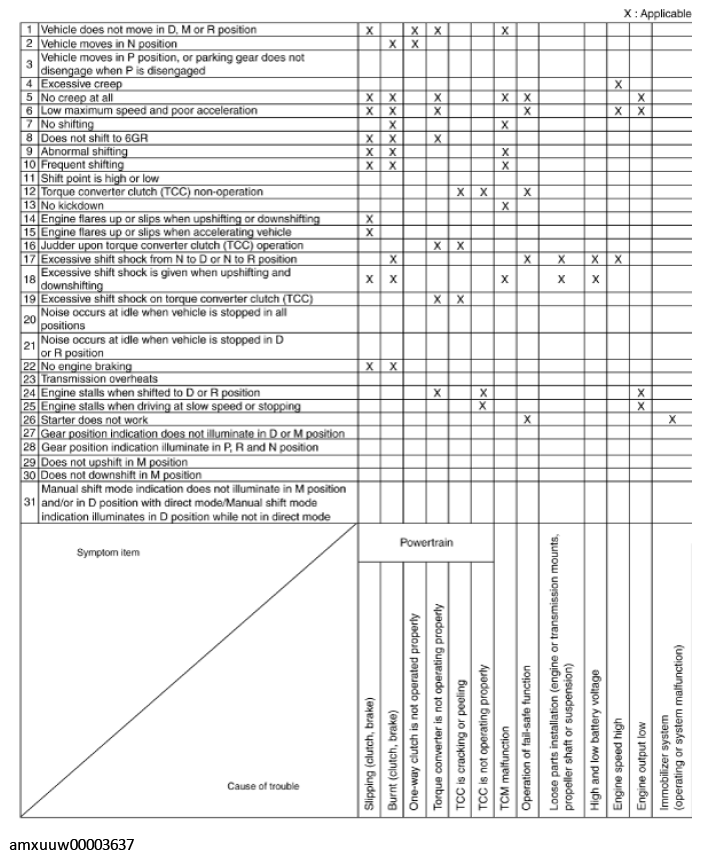

Fig 2: Automatic Transmission Control System Quick Diagnosis Chart (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

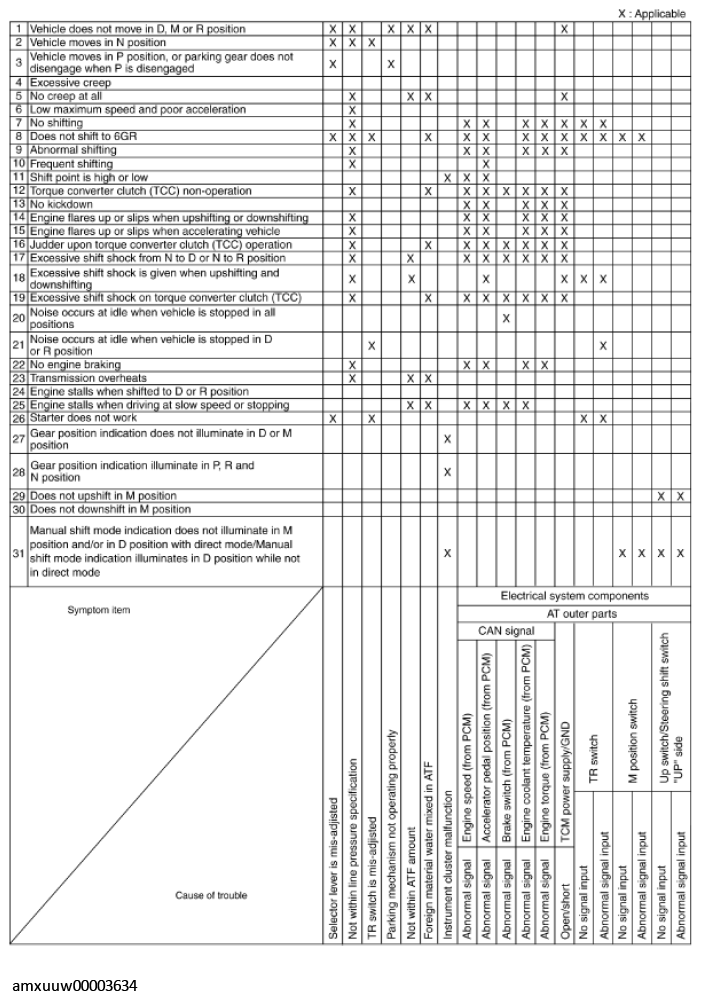

Fig 3: Automatic Transmission Control System Quick Diagnosis Chart (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

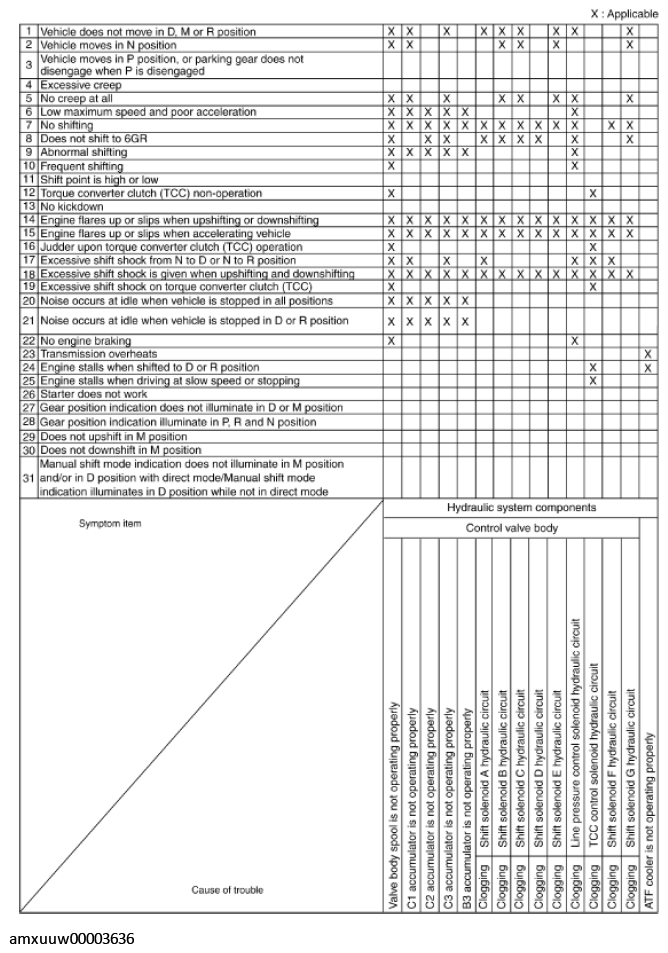

Fig 4: Automatic Transmission Control System Quick Diagnosis Chart (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

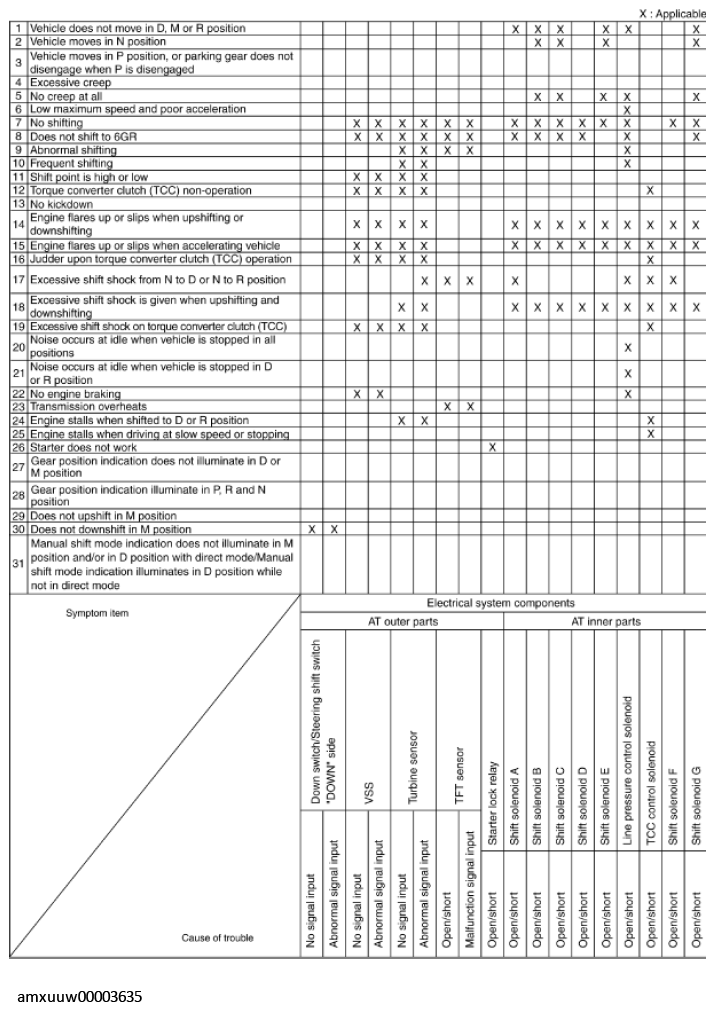

Fig 5: Automatic Transmission Control System Quick Diagnosis Chart (5 Of 5)
Courtesy of MAZDA MOTORS CORP.
