Troubleshooting Procedure

Fig 1: Foreword Troubleshooting Procedure Flow Chart

Courtesy of MAZDA MOTORS CORP.

*1 : (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW ).

Repair order form

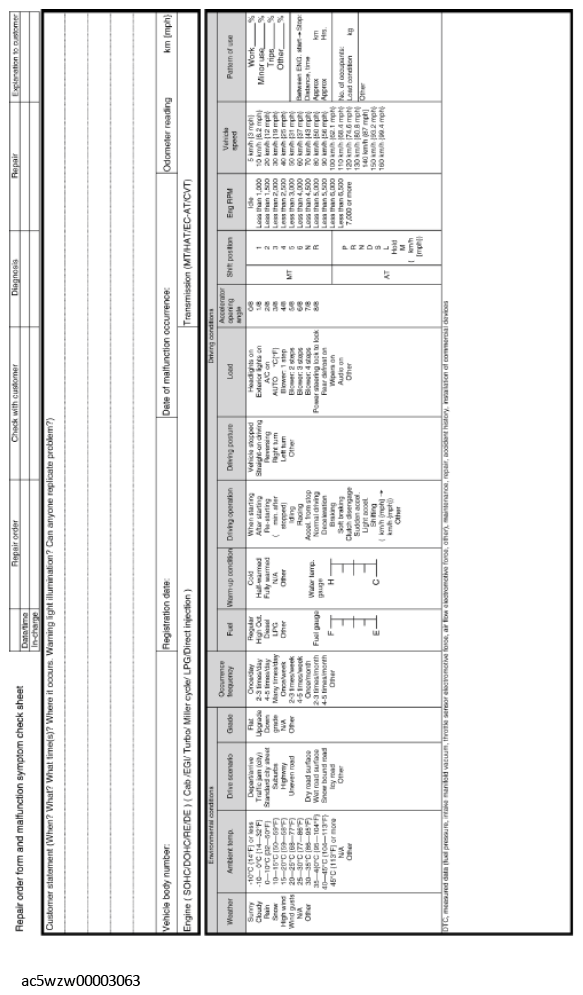

Fig 2: Repair Order Form (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Repair Order Form (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

• Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data (such as PCM circuit voltage) at that time, and detect the malfunction cause.
• Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.
  Fig 4: Shaking Wiring Harness Or Connector Of Electrical Component

  Courtesy of MAZDA MOTORS CORP.
• Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM ).

Fig 5: Inspecting Female Terminals On Connector Of Electric Component

Courtesy of MAZDA MOTORS CORP.
