Automatic Transmission Control System Wiring Diagram

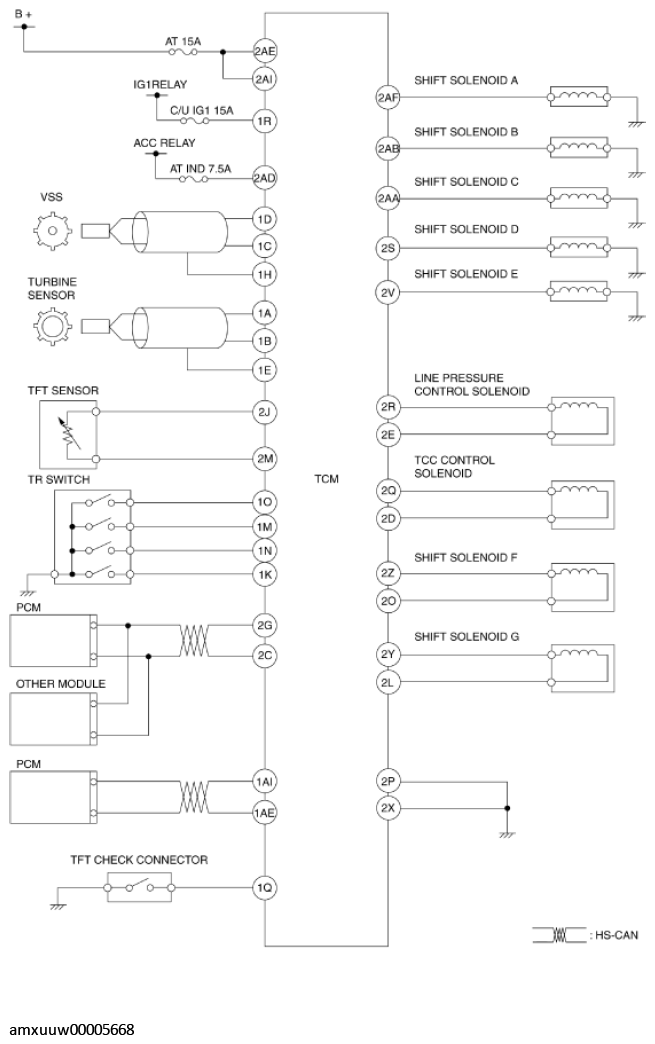

Fig 1: Automatic Transmission Control System Wiring Diagram

G11279584

Courtesy of MAZDA MOTORS CORP.
