Nut Installation Note

Temporarily tighten nuts A and B shown in the figure.

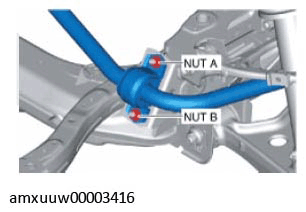

Fig 1: Identifying Front Stabilizer Component Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten nut B.
Tightening torque

20-25 N.m {2.1-2.5 kgf.m, 15-18 ft.lbf}
Tighten nut A.
Tightening torque

20-25 N.m {2.1-2.5 kgf.m, 15-18 ft.lbf}
Tighten nut B.
Tightening torque

20-25 N.m {2.1-2.5 kgf.m, 15-18 ft.lbf}
