MX-5 Miata Club, Automatic Trans
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Basic System - HVAC
>>
HVAC Basic System Location Index
HVAC Basic System Location Index

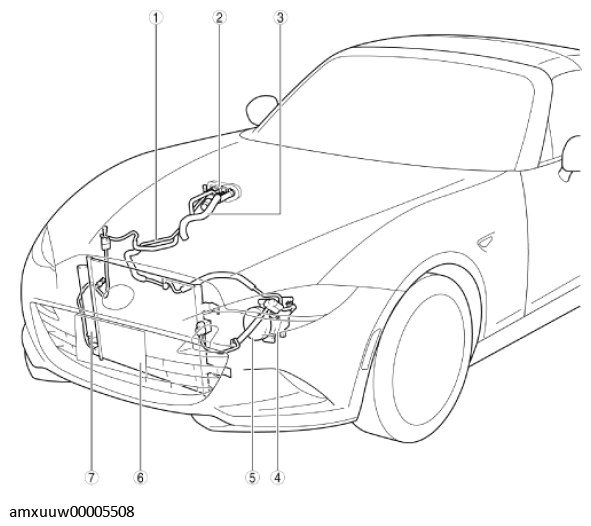

Fig 1: HVAC Basic System Components Location (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

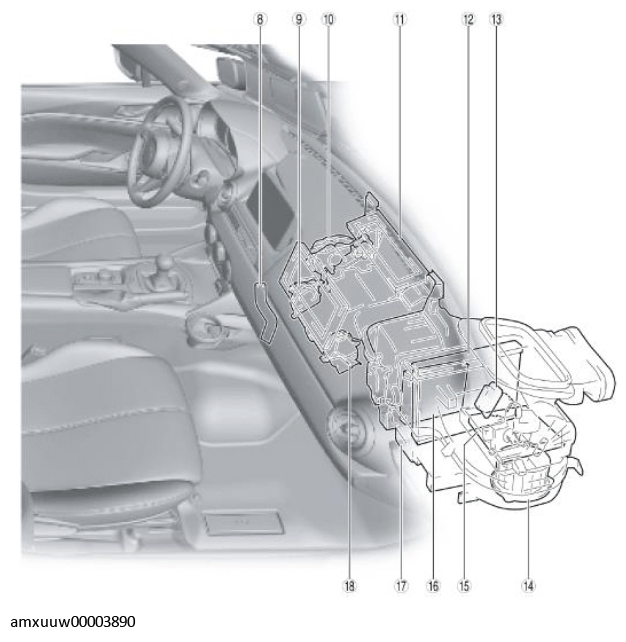

Fig 2: HVAC Basic System Components Location (2 Of 3)
Courtesy of MAZDA MOTORS CORP.
Fig 3: HVAC Basic System Components Location (3 Of 3)
Courtesy of MAZDA MOTORS CORP.

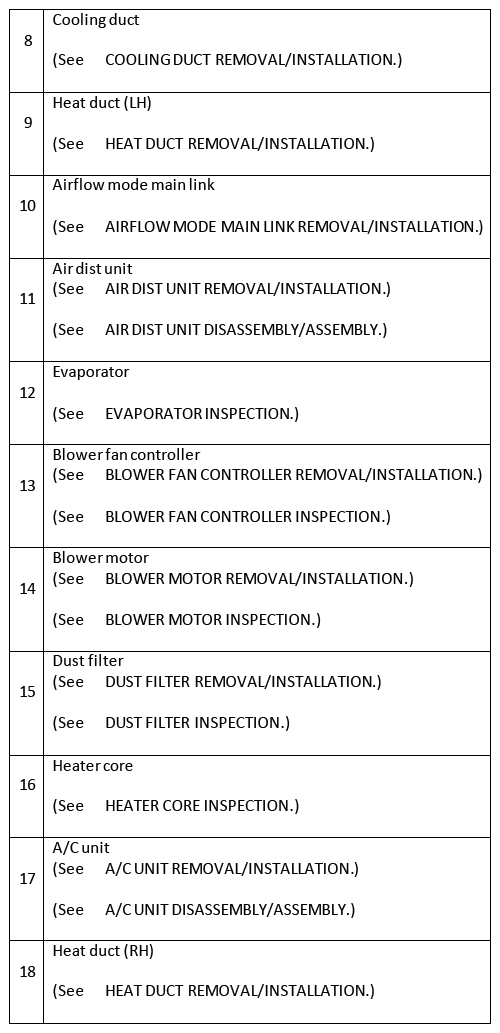

Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
