Pilot Bearing Installation Note

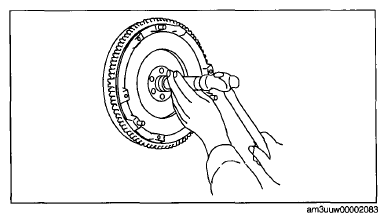

Fig 1: Installing Pilot Bearing

Courtesy of MAZDA MOTORS CORP.

Tool

Snap-on brand millimeter size bushing driver set (A160M) adapter A160M7 (20-22 mm)

• Use the adapter with the 20 mm side of the A160M7 (20-22 mm) facing the pilot bearing side.

Substitution tool

Outer diameter: 21 mm {0.83 in}

Inner diameter: 19 mm {0.75 in}

Specified position

Distance A of pilot bearing from crankshaft end: 1.5-2.5 mm {0.060-0.098 in}

Fig 2: Checking Pilot Bearing Distance From Crankshaft End

Courtesy of MAZDA MOTORS CORP.
