Trunk Covering Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners.

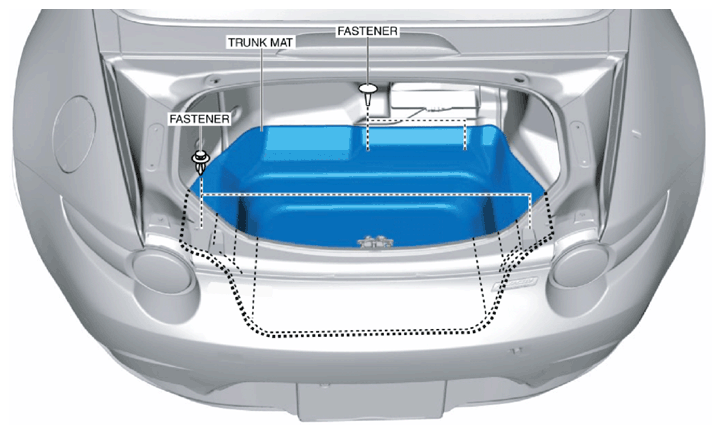

    Fig 1: Removing Trunk Covering Fasteners
    G10954690Courtesy of MAZDA MOTORS CORP.
  2. Remove the trunk covering.
  3. Install in the reverse order of removal.
