Partition Board Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fasteners.

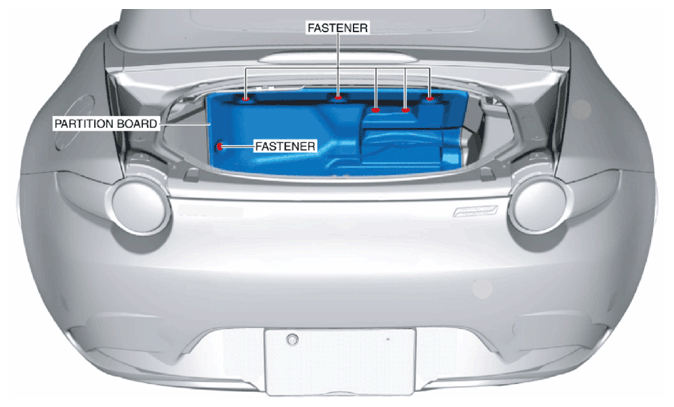

Fig 1: Removing Partition Board Fasteners
Courtesy of MAZDA MOTORS CORP.
Partially peel back the front side of the trunk mat.
Remove the fasteners.

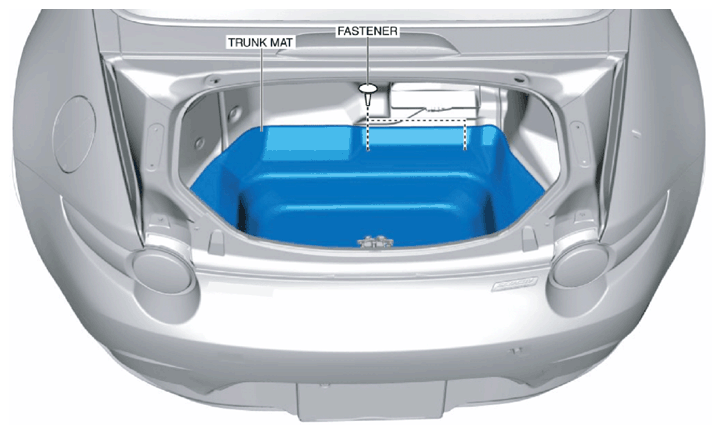

Fig 2: Removing Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the partition board.
Install in the reverse order of removal.
