Using the DTC troubleshooting flow

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

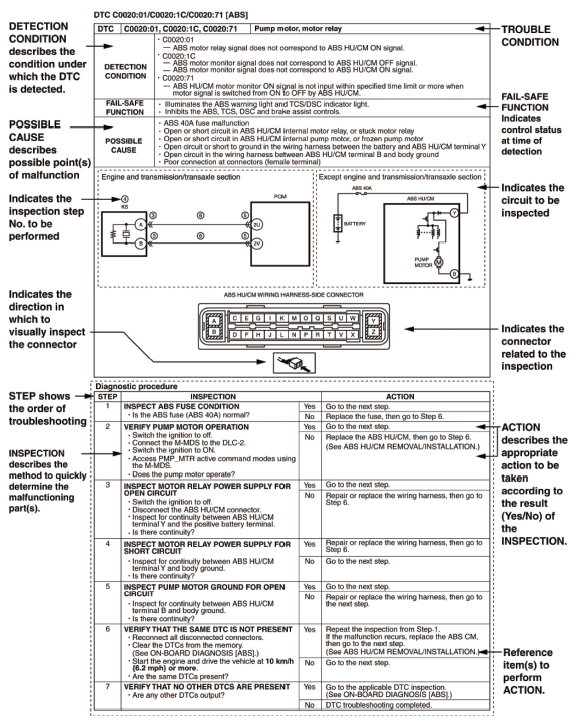

Fig 1: Symptom Troubleshooting Chart (Using DTC Troubleshooting Flow)
G10951145Courtesy of MAZDA MOTORS CORP.
