Electrical System: Terminals: Inspection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Pull lightly on individual wires to verify that they are secured in the terminal.

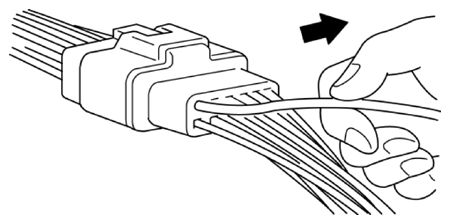

Fig 1: Pulling Out Wire

Courtesy of MAZDA MOTORS CORP.
