Airtightness Check

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the manifold gauge reading has not changed.

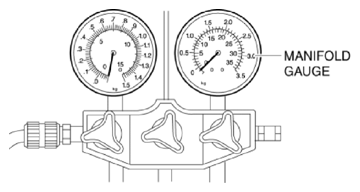

Fig 1: Checking Manifold Gauge Reading
Courtesy of MAZDA MOTORS CORP.
- If the manifold gauge reading has changed, inspect the refrigerant system following the symptom troubleshooting procedure. (See FOREWORD [CLIMATE CONTROL UNIT (FULL-AUTO AIR CONDITIONER)] .) (See FOREWORD [CLIMATE CONTROL UNIT (MANUAL AIR CONDITIONER)] .)
- If the reading has not changed, perform a charging new refrigerant. (See Charging New Refrigerant (HFC-134a) .)
