Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the valves of the manifold gauge.

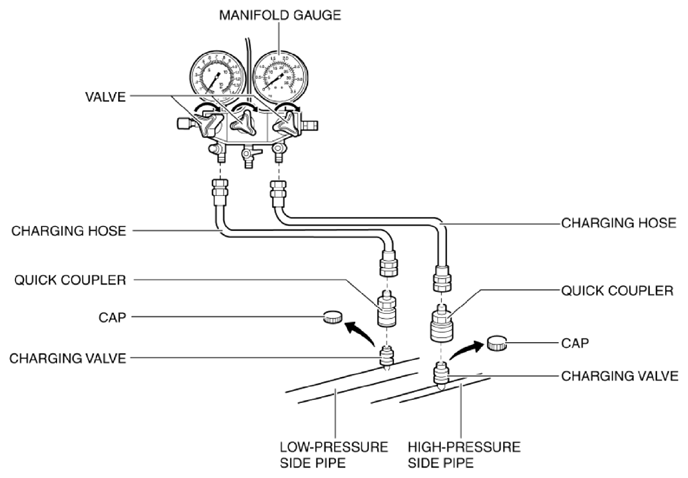

    Fig 1: Identifying Manifold Gauge Set Components
    G10953144Courtesy of MAZDA MOTORS CORP.
  2. Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Connect the quick couplers to the charging valves.
