Rain Sensor Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Open the rain sensor cover in the direction of arrows (1) shown in the figure and detach the rain sensor cover tabs from the rain sensor.

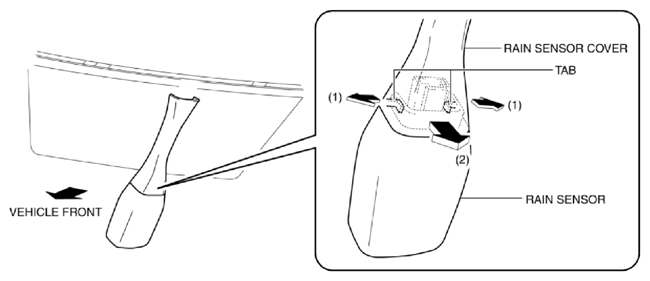

Fig 1: Opening Rain Sensor Cover
Courtesy of MAZDA MOTORS CORP.
Remove the rain sensor cover from the rain sensor in the direction of arrow (2) shown in the figure.
Disconnect the connector.

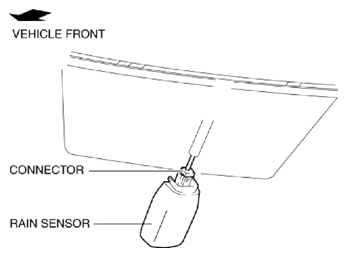

Fig 2: Removing Rain Sensor Cover From Rain Sensor
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the directions of arrows (1) and (2) shown in the figure and detach the stopper pin.

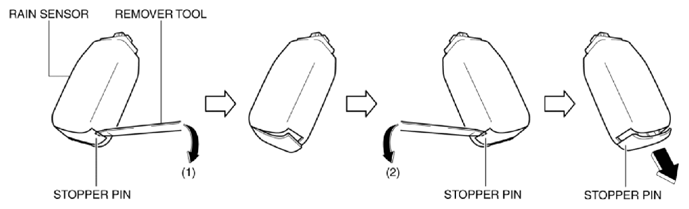

Fig 3: Detaching Stopper Pin
Courtesy of MAZDA MOTORS CORP.
Move the rain sensor in the direction of arrow (1) shown in the figure and pull out the rain sensor from the bracket.

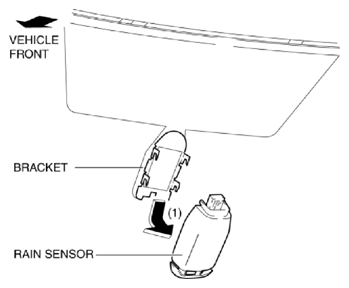

Fig 4: Moving Rain Sensor
Courtesy of MAZDA MOTORS CORP.
Peel off the rain sensor sheet from the rain sensor.

Fig 5: Peeling Off Rain Sensor Sheet From Rain Sensor

Courtesy of MAZDA MOTORS CORP.
