Quick Release Connector Removal Note
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

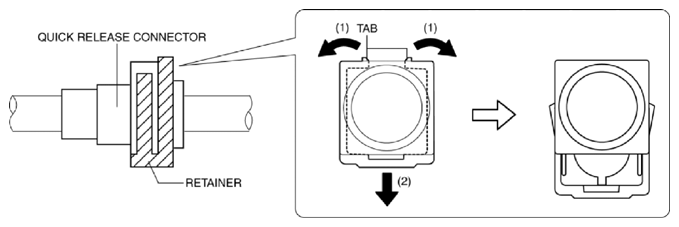

- Move the retainer tabs in the direction of arrows (1) shown in the figure, move the retainer in the direction of arrow (2).
Courtesy of MAZDA MOTORS CORP.
- Pull out the quick release connector straight from the electric vacuum pump and disconnect it.
