Breather Hose Installation Note

1. Install the breather hose as shown in the figure below.

U. S. A. and CANADA specs.

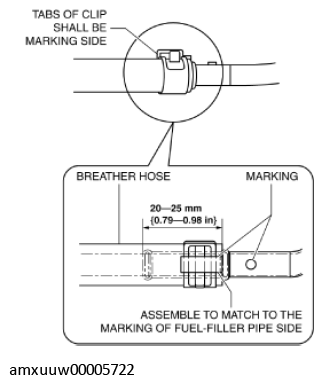

Fig 1: Assembling Match Marking Of Fuel-Filler Pipe Side (USA And CANADA Specs)

Courtesy of MAZDA MOTORS CORP.

Except U. S. A. and CANADA specs.

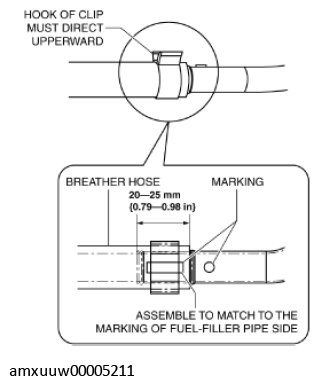

Fig 2: Assembling Match Marking Of Fuel-Filler Pipe Side (Except USA And CANADA Specs)

Courtesy of MAZDA MOTORS CORP.
