Cylinder Head Cover Removal Note

  1. Disconnect the OCV connector.
  2. Remove the wiring harness clip secured to the intake manifold as shown in the figure below, and set the wiring harness aside.

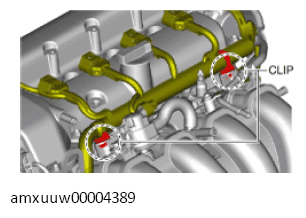

    Fig 1: Identifying Intake Manifold Wiring Harness Clip
    G11275881Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the ventilation hose.
  4. Remove the cylinder head cover.
