Engine mount bracket (LH) installation Note

Install the engine mount bracket (LH).

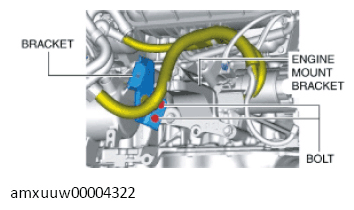

Fig 1: Identifying Engine Mount Bracket (LH) And Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque

29-40 N.m {3.0-4.0 kgf.m, 22-29 ft.lbf}
Return the clutch pipe and bracket to their original positions and tighten the bolts. (MT)

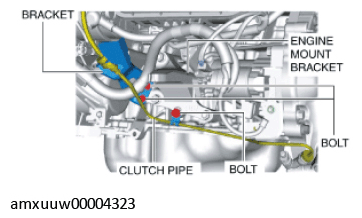

Fig 2: Identifying Engine Mount Bracket, Bolts, Bracket And Clutch Pipe
Courtesy of MAZDA MOTORS CORP.

Tightening torque

Clutch pipe: 19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}

Bracket: 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Return the bracket to their original positions and temporarily tighten the bolts. (AT)

Fig 3: Identifying Engine Mount Bracket, Bolts And Bracket
Courtesy of MAZDA MOTORS CORP.
Tighten the bracket installation bolts in the order as shown in the figure below.

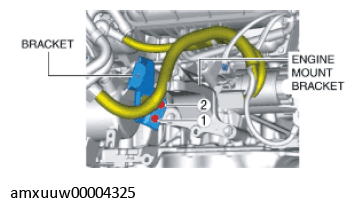

Fig 4: Bracket Installation Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Return the oil pipe to their original positions and tighten the bolts. (AT) (See OIL COOLER REMOVAL/INSTALLATION ).
