Seal Ring Installation Note

CAUTION:

If the TWC or main silencer is reused, sand the flange surface and remove sanding residue, accumulated matter, and friction marks before installing the seal ring. If this work is not performed, the seal ring may not be installed correctly.
If installation is performed without using the SST, the seal ring will be damaged and deformed, resulting in an incorrect installation. Always use the SST to install the seal ring.

Temporarily install the seal ring to the pipe so that the seal ring is even with the flange.

Fig 1: Identifying Seal Ring With Flange
Courtesy of MAZDA MOTORS CORP.
Install the SST to the seal ring so that the SST is even with the flange.

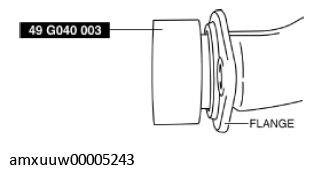

Fig 2: Installing SST To Seal Ring With Flange
Courtesy of MAZDA MOTORS CORP.
Press in the seal ring by tapping the SST using a plastic hammer until the seal ring contacts the flange.

Fig 3: Tapping SST Using Plastic Hammer Until Seal Ring Contacts Flange

G11274391

Courtesy of MAZDA MOTORS CORP.
