Oil Pump Driven Sprocket Installation Note

Example of tool installation

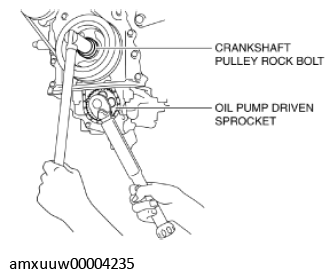

Fig 1: Installing Oil Pump Driven Sprocket

Courtesy of MAZDA MOTORS CORP.

Tightening torque

Black bolt: 20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}

Silver bolt: 26-36 N.m {2.7-3.6 kgf.m, 20-26 ft.lbf}
