Clip, Brake Pipe Installation Note

  1. Install the clip as shown in the figure below.

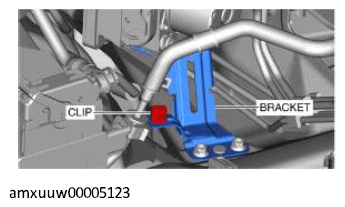

    Fig 1: DSC HU/CM Bracket And Clip
    G11273848Courtesy of MAZDA MOTORS CORP.
  2. Install the brake pipe to the clip.
