Brake Pipe Removal Note

  1. Place an alignment marks on the brake pipe and DSC HU/CM.

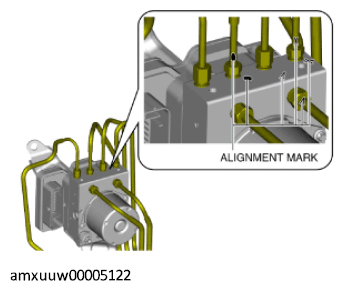

    Fig 1: DSC HU/CM And Brake Pipe Alignment Marks
    G11273847Courtesy of MAZDA MOTORS CORP.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Disconnect the brake pipes.
