Auto-Dimming Rearview Mirror Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Disconnect the connector.

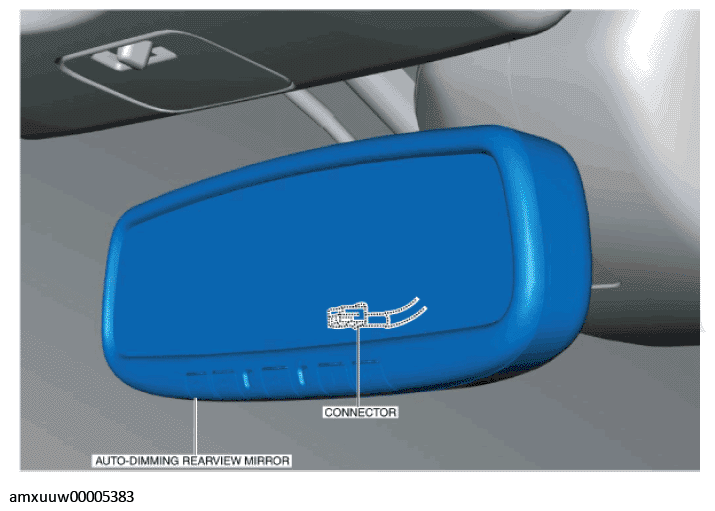

Fig 1: Identifying Auto-Dimming Rearview Mirror And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the cover in the direction of the arrow shown in the figure.

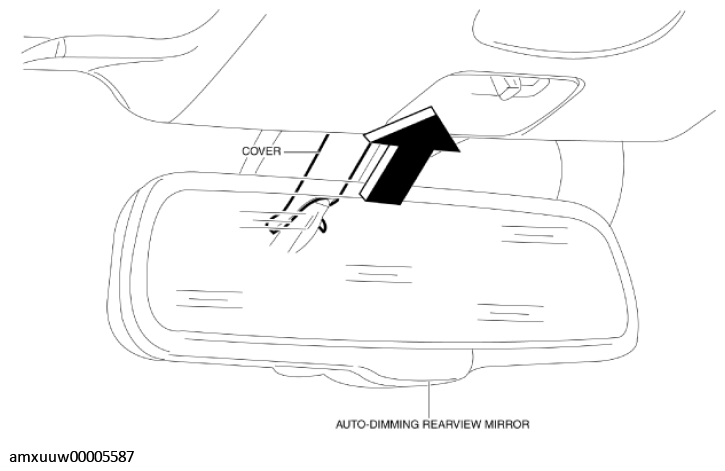

Fig 2: Removing Auto-Dimming Rearview Mirror Cover
Courtesy of MAZDA MOTORS CORP.
Loosen the screw.

Fig 3: Identifying Auto-Dimming Rearview Mirror And Screw
Courtesy of MAZDA MOTORS CORP.
Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

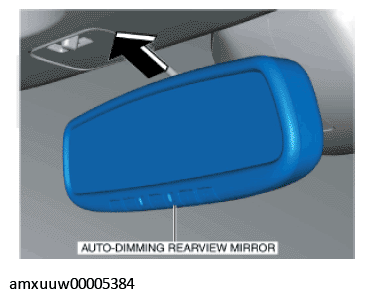

Fig 4: Removing Auto-Dimming Rearview Mirror
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
