Retractable Fastback

Using the retractable fastback switch, keep the rear roof open.

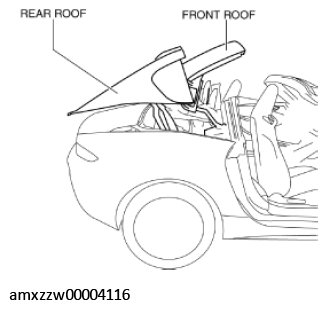

Fig 1: Identifying Rear And Front Roof
Courtesy of MAZDA MOTORS CORP.
Remove the clip.(LH)

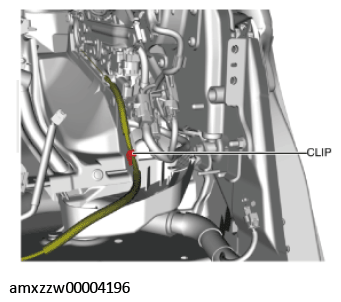

Fig 2: Identifying Harness Clip (LH)
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners.

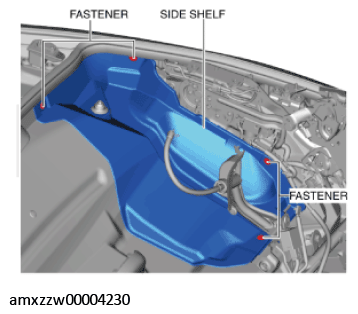

Fig 3: Identifying Fasteners And Side Shelf
Courtesy of MAZDA MOTORS CORP.
Remove the tab.

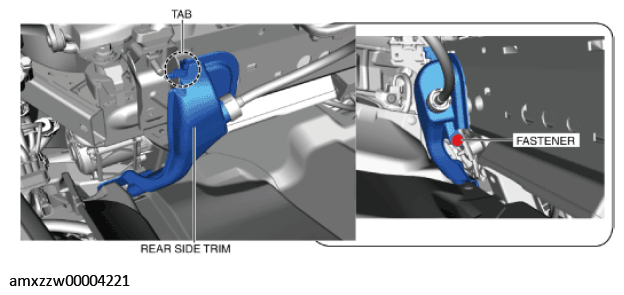

Fig 4: Identifying Tab And Rear Side Trim
Courtesy of MAZDA MOTORS CORP.
Remove the fastener.
Remove the joint and disconnect the retractable fastback drain hose from the rear side trim.

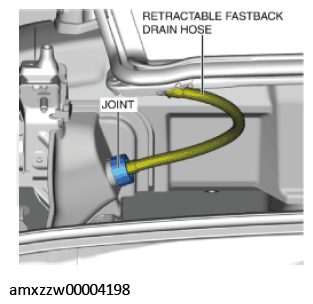

Fig 5: Identifying Retractable Fastback Drain Hose And Joint
Courtesy of MAZDA MOTORS CORP.
Push the stopper rubber through the side shelf while slightly lifting the side shelf up.

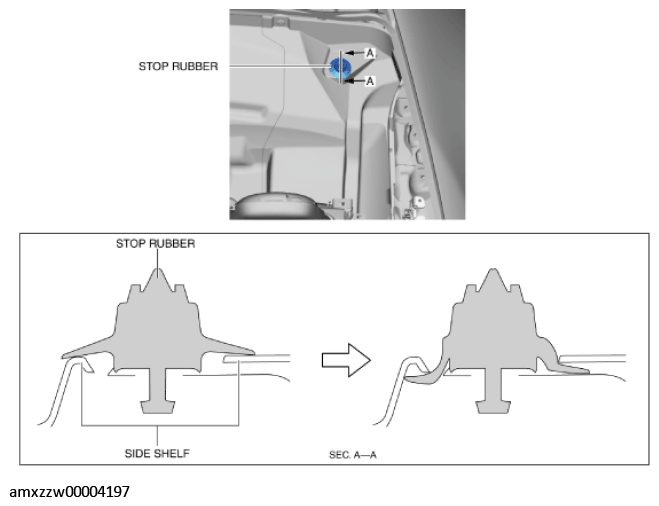

Fig 6: Pushing Stopper Rubber Through Side Shelf
Courtesy of MAZDA MOTORS CORP.
Remove the side shelf and the rear side trim as a single unit.
Remove the side shelf trim the rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION ).
Install in the reverse order of removal.
