Retractable Fastback

  1. Using the retractable fastback switch, keep the front roof half-open.

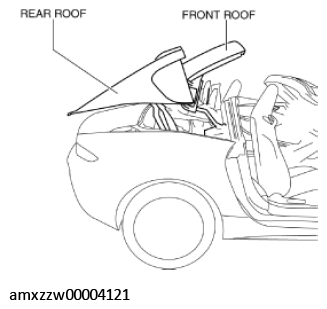

    Fig 1: Identifying Front Roof And Rear Roof
    G11275299Courtesy of MAZDA MOTORS CORP.
  2. Remove the front seat back bar garnish. (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION ).
  3. Remove the fastener.

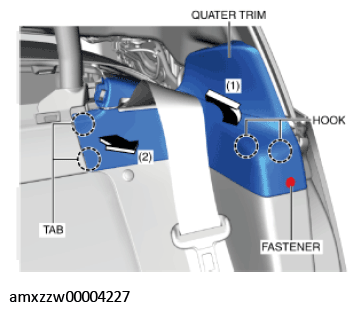

    Fig 2: Removing Front Seat Back Bar Garnish
    G11275300Courtesy of MAZDA MOTORS CORP.
  4. Move the quarter trim in the direction of arrow (1) shown in the figure and unhook the hooks.
  5. Move the quarter trim in the direction of arrow (2) shown in the figure and remove it.
  6. Pull the seat belt out from the slit.
  7. Install in the reverse order of removal.
