Partition Board Removal/Installation

  1. Remove the fasteners.

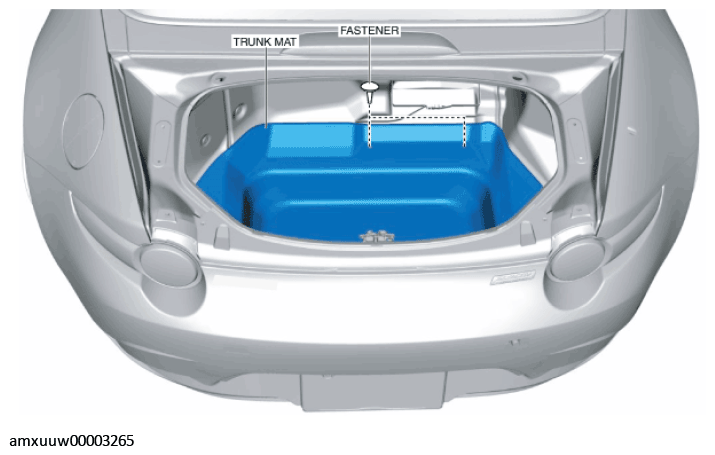

    Fig 1: Identifying Fastener And Trunk Mat
    G11275294Courtesy of MAZDA MOTORS CORP.
  2. Partially peel back the front side of the trunk mat.
  3. Remove the fasteners.

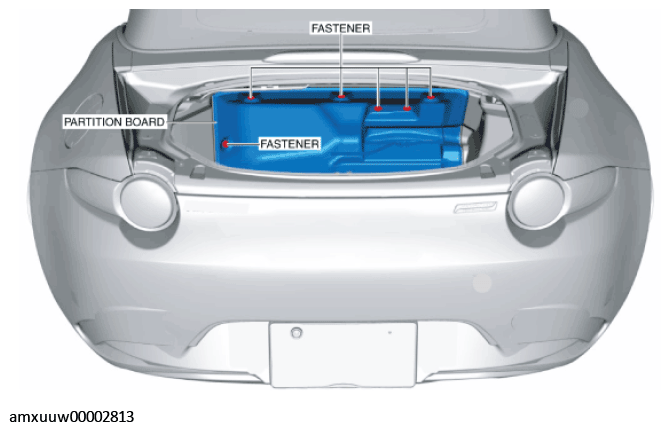

    Fig 2: Identifying Fasteners And Partition Board
    G11275295Courtesy of MAZDA MOTORS CORP.
  4. Remove the partition board.
  5. Install in the reverse order of removal.
