Meter Hood Disassembly/Assembly

Disassemble in the order indicated in the table.

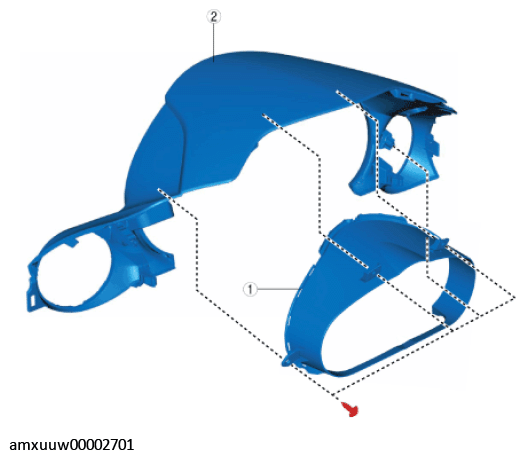

Fig 1: Identifying Meter Cover And Meter Hood
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Meter cover

2 Meter hood
When replacing the meter hood, remove the following parts:
1. Microphone (with center display) (with Bluetooth® unit) (See MICROPHONE REMOVAL/INSTALLATION ).
2. Center ventilator grille No. 2 (See VENTILATOR GRILLE REMOVAL/INSTALLATION ).
3. Side ventilator grille No. 1 (See VENTILATOR GRILLE REMOVAL/INSTALLATION ).
Assemble in the reverse order of disassembly.

1	Meter cover
2	Meter hood
